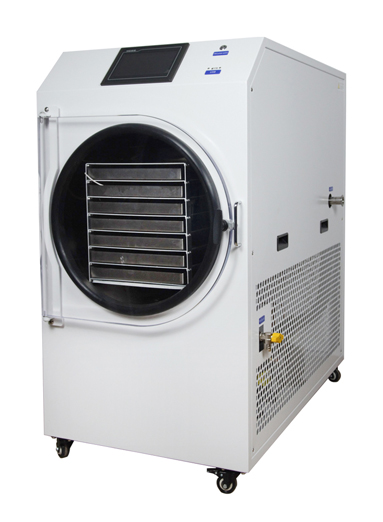

Household-type freeze dryer, also known as home freeze dryer, is a small vacuum freeze dryer.Apply to the family, widely adapted to fruits,candy, meat, vegetables, Chinese herbal medicines, health products,etc
Product feature of Freeze Dryer: 1. Stylish appearance, small size and exquisite; 2. Transparent plexiglass door for easy observation of the lyophilization process; 3. SUS304 stainless steel material plate and liner, safe and secure; 4. Acrylic door with flexbile hinge to ensure vacuum degree 5. Import of key components, low noise, high capacity, high quality and high performance; 6. Touch screen operation, one-button start, automatic control of freeze-drying process, easy and convenient; 7. The freeze-drying process can be set and adjusted in real time, and the freeze-drying data and freeze-drying curve can be displayed. 8. Advanced system, low operating current and low energy consumption; 9. One-button fast defrosting technology, over temperature automatic protection. 10.Commercial grade vacuum pump with low noise (oilless vacuum pump is optional)
Vacuum Freeze Drying Machine is widely used in food, fruit, vegetable, fish, sea cucumer,shrimp, meat drying indstury, etc.
The dried product by Home Small Mini Vacuum Freeze Dryers Lyophilizer for Sale machine is with good taste, beautiful color and good shape.
Compared with air drying, dehydration and other technologies, the biggest characteristic of freeze-dried food is to retain the color, aroma, taste, shape of the product and the nutritional composition of the original ecological food.
Main Features:
* LCD Touch screen,low noise, large capacity
* The controller is moved to the top left corner for easy operation.
* Automatic one-key start PLC control system throughout the complete freeze dyring process
* Oil vacuum pump and oil-free vacuum pump are available
* Low voltage operating current and low energy consumption
What exactly is a freeze dryer?
A freeze dryer machine is simply an appliance that removes nearly all the moisture from foods.
There are several important benefits to removing moisture from food, the primary benefit being an incredibly long shelf life.
And when it comes to food preservation, and reduced food waste, it's all about improved shelf life.
Home freeze dryer is a small vacuum freeze dryer. It is suitable for small scale freeze drying at home and online stores. Home freeze dryer is widely adapted to the freeze drying of fruits, meats, vegetables, Chinese medicinal materials, health products and other products.
One that involves 3 main steps:
* Freezing
* Lowering pressure
* Removing the moisture through sublimation
|
Model No. |
Machine type |
HFD-1 |
HFD-4 |
HFD-6 |
HFD-7 |
HFD-8 |
HFD-9 |
|
Type |
Specification |
Home Freeze drying machine (Food grade) |
|||||
|
Capacity |
Lyophilized area |
0.1m2 |
0.35m2 |
0.52m2 |
0.65m2 |
O.85m2 |
0.9m2 |
|
Basic parameter |
Tray spacing |
65mm |
45mm |
66mm |
52mm |
38mm |
35mm |
|
Tray size(mm) |
200*425 |
200*425 |
310*420 |
250*425 |
250*425 |
200*425 |
|
|
Tray quantity |
3 |
4 |
4 |
6 |
8 |
10 |
|
|
Processing capacity (kg/batch) |
2-3 |
4-6 |
6-8 |
8-10 |
10-12 |
12-14 |
|
|
Cold trap temperature |
-55℃ |
||||||
|
Limiting vacuum |
Below 2pa |
||||||
|
Catchage |
3KG/24H |
4KG/24H |
8KG/24H |
9KG/24H |
10KG/24H |
12KG/24H |
|
|
Pumping rate |
2L-4L/S |
||||||
|
Cooling mode |
Air cooling |
||||||
|
Temperature requirement |
10-35℃ |
||||||
|
Relative humidity |
≤70% |
||||||
|
Environmental requirement |
No conductive dust explosive corrosive gas and strong magnetic field interference |
||||||
|
Running noise |
≤60dB |
||||||
|
Base rationing |
Net weight |
75KG |
78KG |
120KG |
125KG |
130KG |
135KG |
|
Overall dimension (mm) |
530*680*900 |
530*680*900 |
635*723*1130 |
635*723*1130 |
635*723*1130 |
635*723*1130 |
|
|
Package size (mm) |
610*780*1280 |
610*780*1280 |
710*800*1500 |
710*800*1500 |
710*800*1500 |
710*800*1500 |
|
|
Packed weight |
133KG |
142KG |
165KG |
172KG |
178KG |
180KG |
|
|
Supply voltage |
220V/50Hz can be customized 110V or 380V |
||||||
|
Power |
1500W |
1500W |
1800W |
2000W |
2200W |
2300W |
|
|
Main material |
304 stainless steel |
||||||
